| Brand Name : | PEAK INSTRUMENTS |
| Model Number : | S-610P100 |
| Supply Ability : | 1000 Unit/Units per Month |
| Price : | $183.00 - $305.00/units |

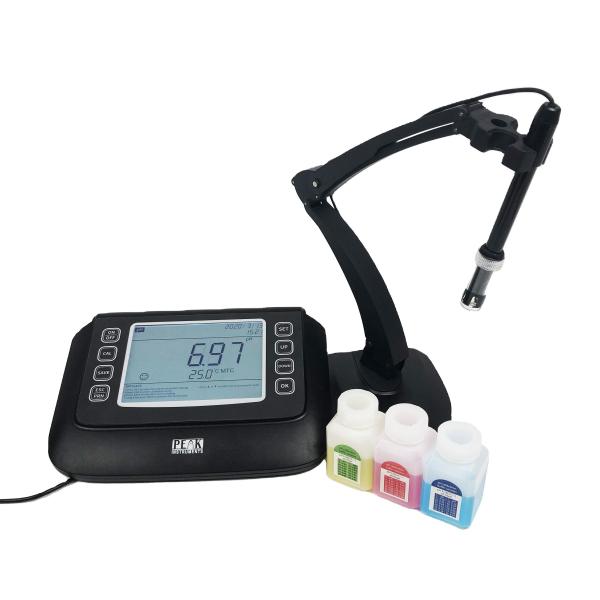

Product Name | Pure water pH/mV Meter |
Types | Benchtop pH/mV tester |
Origin | China |
Brand | PEAK INSTRUMENTS |
Model | S-610P100 |
Display | 6.5 inch LCD |
Measurement range | (-2~19.99)pH |
Resolution | 0.1/0.01pH |
Accuracy | ±0.02pH |
Stability | ±0.01pH/3h |
Temperature measuring range | -5℃~110℃ |
Temperature Resolution | 0.1℃ |
Temperature Accuracy | ±0.5℃ |
Temperature compensation | 0~100℃,automatic |
mV range | -1999.9mV~1999.9mV |
mV resolution | 1mV |
Calibration | 1, 2, 3 points |
Buffers | USA/NIST/China |
Data storage | 500 sets |
Communication interfaces | USB |
Working Conditions | Temperature: 5-40° Humidity: 5-85% |
Power | 12V/1A |
Size & Weight | 240×170×70mm/600g |







1. Make main board | 2. Install lines for main board | 3. Prepare device housing | 4.Assemble core board on main board |


5.Install main board on the frame | 6. Install display screen on front frame |




7.Upload software | 8. Install electrode connectors | 9. Connect mainboard and display board | 10. Housing installation and calibration |
